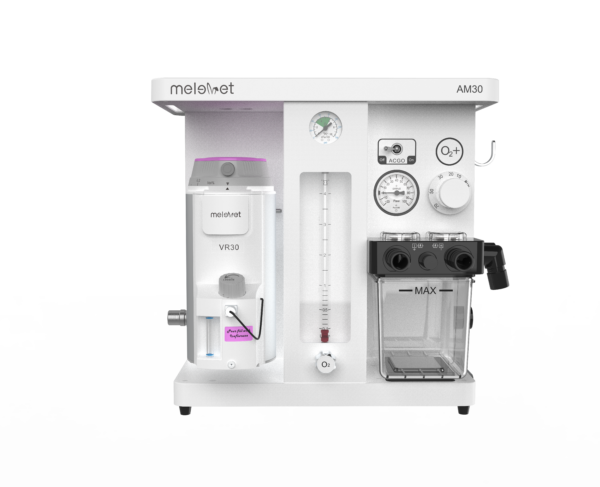

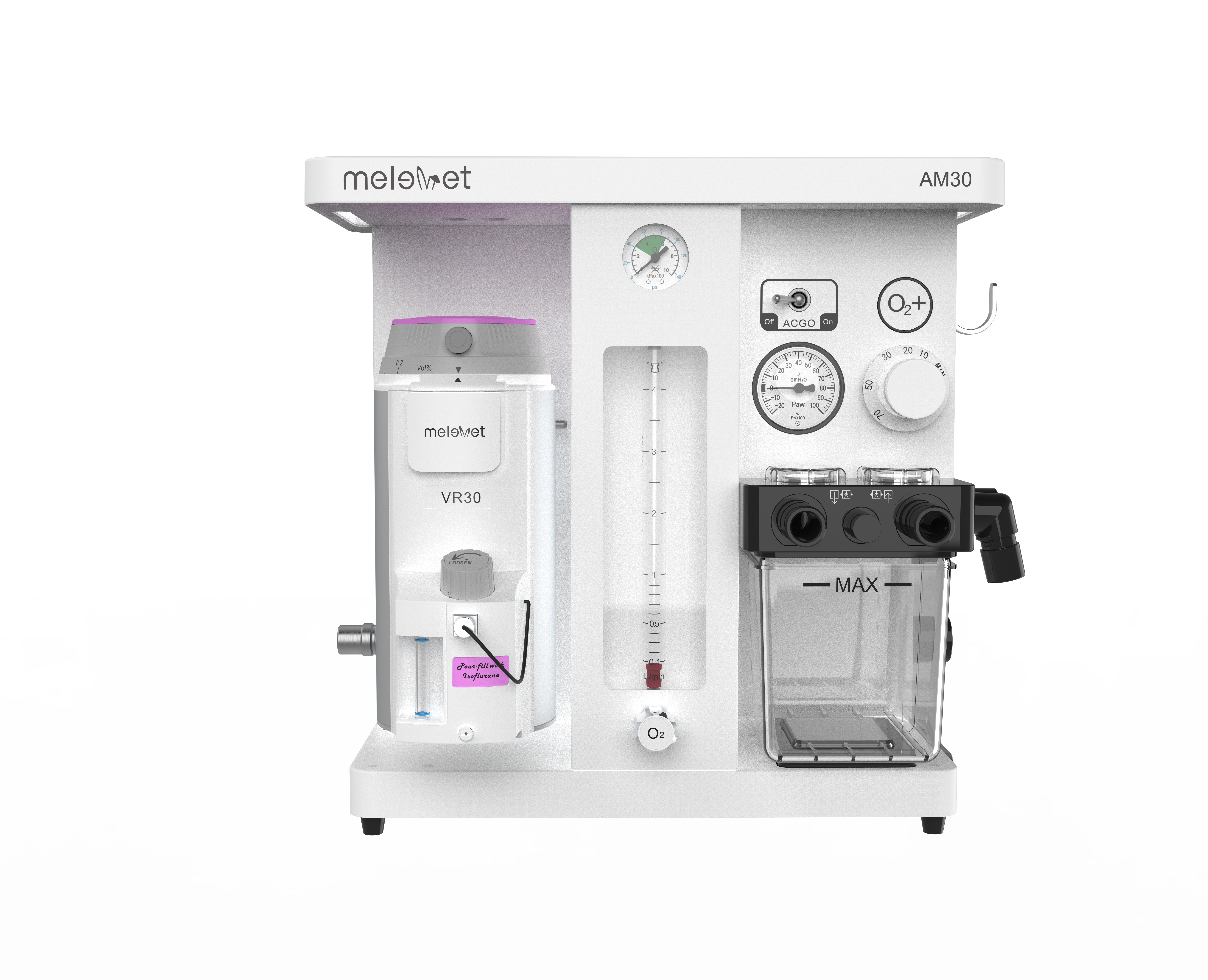

AM30 Ultra-Compact Veterinary Anesthesia Machine
AM30 Ultra-Compact Veterinary Anesthesia Machine
The ultra-compact design supports multiple installation methods, saving space and enhancing flexibility.
• Designed for convenience—functions, gauges, and switches are located on the front panel for quick access.
• Available as a stand-alone unit, desktop model, or wall-mounted configuration.
• Quick and easy vaporizer replacement.
• ACG switch for seamless switching between rebreathing and non-rebreathing anesthesia circuits.
• Equipped with an oxygen pressure gauge and safety valve.
• A pre-calibrated APL valve precisely sets the maximum airway pressure.
• A 1400ml large-capacity CO2 absorber canister ensures efficient gas absorption.
One-step switch between rebreathing and non-rebreathing anesthesia. |
Airway pressure is precisely controlled, with the APL valve closing the airway in a single step. |
 A 1 MPa oxygen pressure gauge, 0.8 MPa safety valve, and 4L flowmeter |
|
A large 1400ml CO2 absorber canister features a one-step locking |
Portable oxygen flexibility accommodates dual oxygen E-cylinders or an oxygen concentrator.. |
Three models to choose from: Stand Model, Desktop Model, and Wall-Mounted Model. |
|
PRODUCT HIGHLIGHT : |
| Multi-applications, Multi-installations Rebreathing anesthesia and non-rebreathing anesthesia; stand, desktop, wall-mounted installations.Selectatec® Vaporizer Selectatec® standard vaporizer, easy replacement; sevoflurane, enflurane, isoflurane optional. Independent Non-Rebreathing Circuit Al-metal ACGO switch and an independent ACGO port to ensure one-stepswitching between rebreathing anesthesia and non-rebreathing anesthesia.Oxygen Pressure Security Oxygen pressure gauge, oxygen pressure status is clear; built-in safety valve ensures product safety.Airway Pressure Management Pre-calibrated APL valve, set airway pressure level in one step; APL valve button allows one-by-one step; vertical pressure adjusting gauge, airway pressure status is under control.Large Capacity CO2 Absorber Canister Lever mechanism, locking and unlocking by only one-step; 1400ml super large capacity CO2 absorber canister. |
|
Specifications of Gas Circuit System |
|
| Source Gas | Oxygen |
| Air Source Pressure Range | 280 – 600kpa / 40 – 87psi |
| Port Type | NIST/DISS |
| Air Source Pressure Gauge | 0–1.4mpa / 0–140psi |
| Air Source Safety Valve | Built-IN |
| Flowmeter Adjustment Range | 0-4L/min(single tube oxygen flow |
| Vaporizer Base | Vaporizer Base-Single tank |
|
Respiratory System Specifications |
|
| Airway Pressure Gauge |
20 cmH2O – 100 cmH2O |
|
APL Valve |
Adjustment range: 0-70cmH2O, with one key closing button |
| CO2 Absorption Canister | Volume : 1400 mL |
|
Vaporizer |
|
| Vaporizer Type ( Dosing Method ) |
Isoflurane (Pour-Fill, Key-Fill, Easy-Fill) Enflurane (Pour-Fill, Key-Fill, Easy-Fill) Sevoflurane (Pour-Fill, Key-Fill, Easy-Fill) |
| Weight | Empty state: 4 kg ± 0.3 kg Full drug state: 5 kg ± 0.3 kg |
| Volume | Core Drying: 300 ml – 360 ml Core Wetting: 240 ml – 300 mlBetween the max and min tick marks: 200 ml –260 ml |
| Concentration Range | Isoflurane: 0–5 vol% Enflurane: 0–5 vol% Sevoflurane: 0–8 vol% |
|
Specifications |
|
|
Dimensions |
Anesthesia Machine without stand : Height: 385mm, Width: 405mm,Length: 265 mm Anesthesia Machine with stand : Height : 1230mm, Width:510mm, Length: 470mm |
|
Weight |
10kg ( Not including Stand) |
|
Maximum Load on Top |
10Kg |
|
Handle |
Single Handle, Located in the middle of the top |
 |
