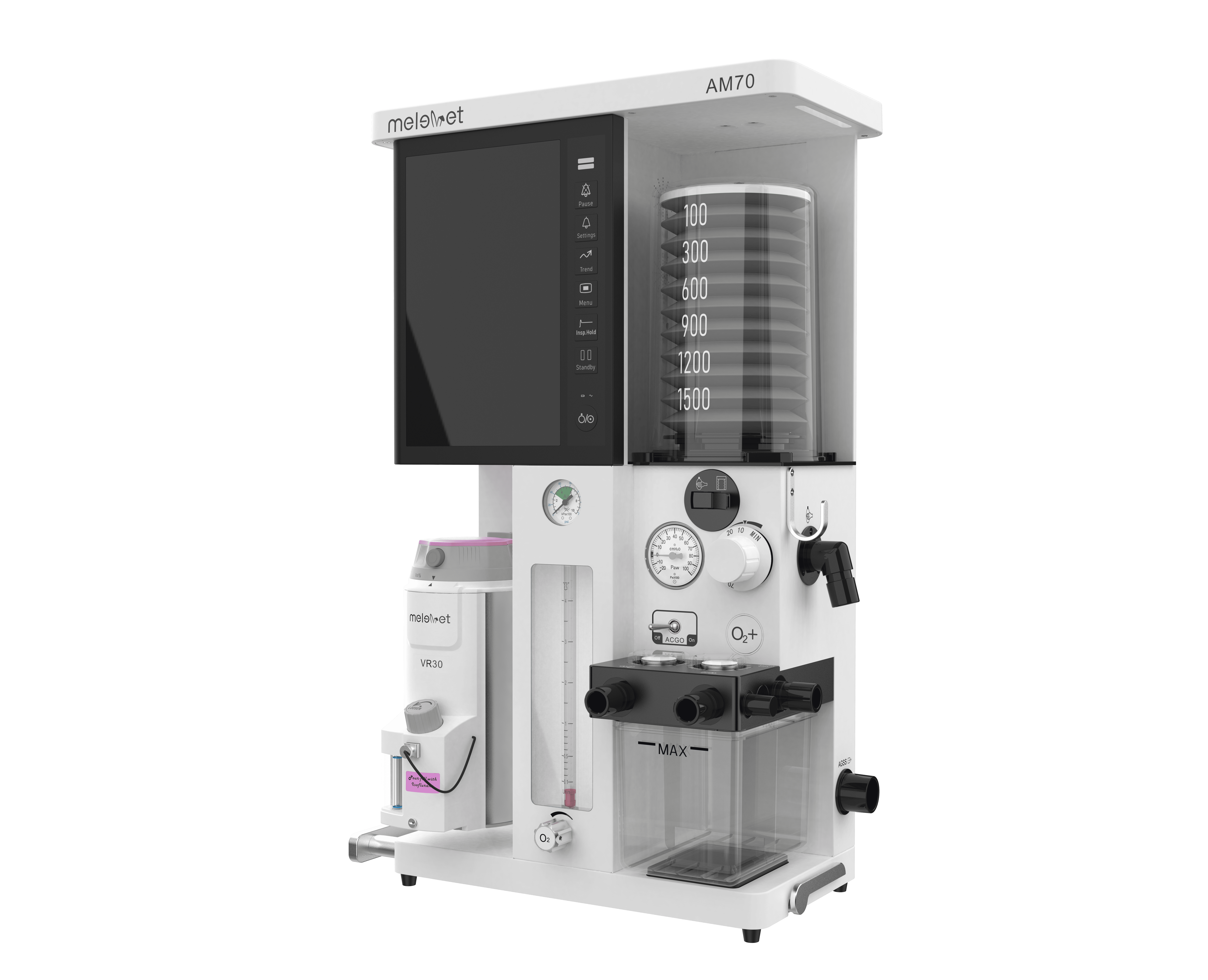

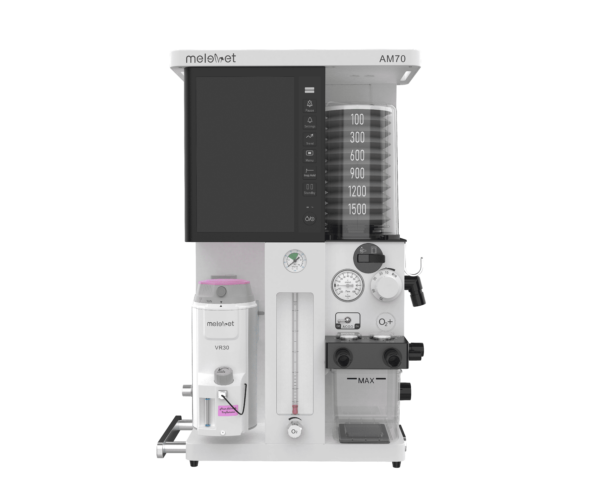

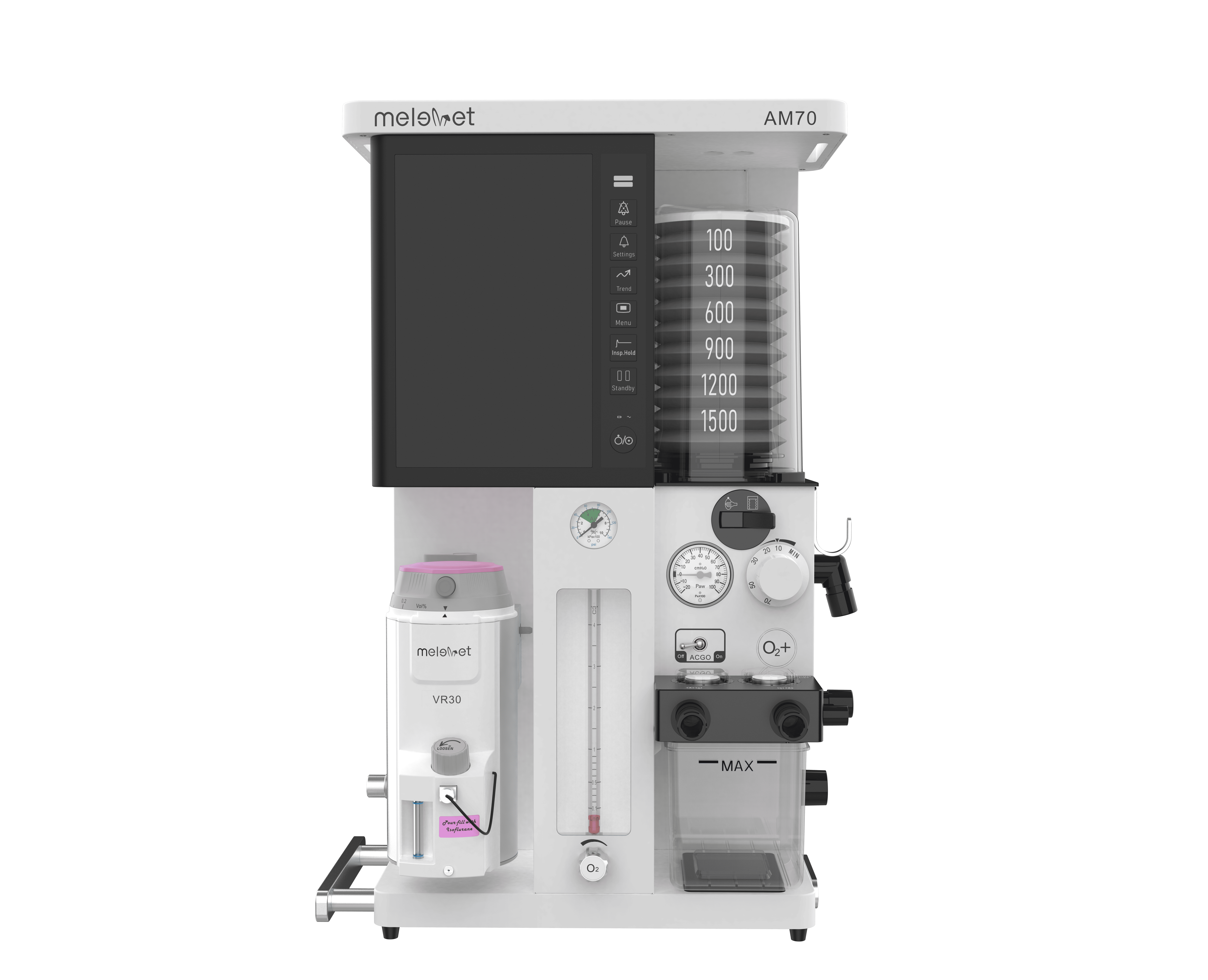

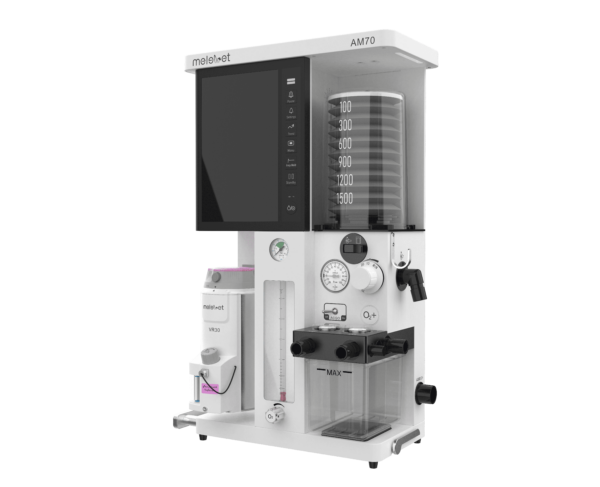

AM70 Veterinary Anesthesia Machine and Ventilator
AM70 Veterinary Anesthesia Machine and Ventilator
Designed to provide unmatched convenience and adaptability
The AM70 offers a dual solution for veterinarians by combining a premium anesthesia machine with an integrated ventilator. It features user-friendly front gauges and controls, a high-performance turbine drive, and a 10-inch TFT touch display. Additionally, it provides flexible installation options, available in stand-alone, desktop, or wall-mounted configurations.
One-step switch between rebreathing and non-rebreathing anesthesia. |
Airway pressure is precisely controlled, with the APL valve closing the airway in a single step. |
A 1 MPa oxygen pressure gauge, 0.8 MPa safety valve, and 4L flowmeter |
|
A large 1400ml CO2 absorber canister features a one-step locking |
Portable oxygen flexibility accommodates dual oxygen E-cylinders or an oxygen concentrator.. |

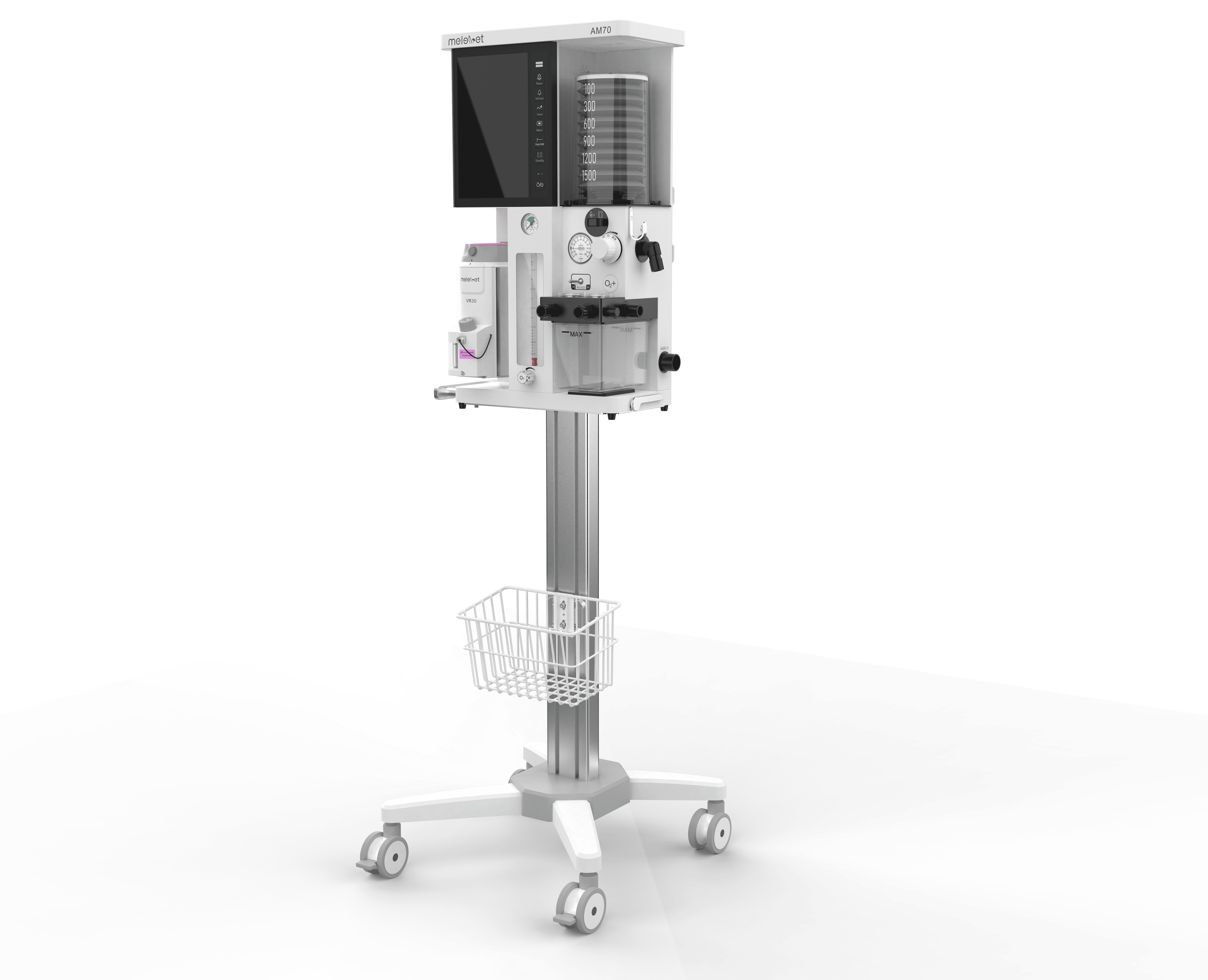

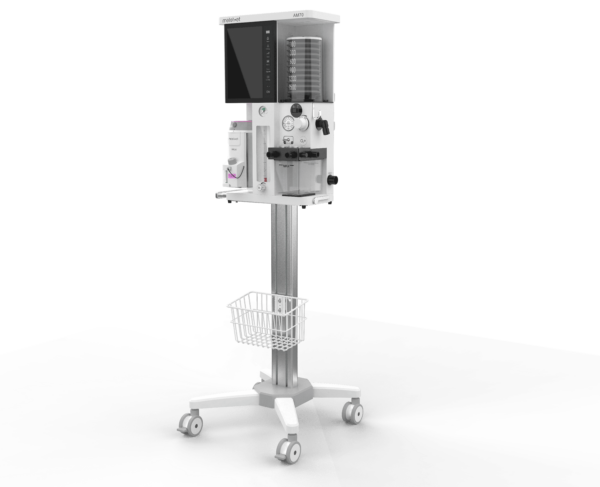

Three models to choose from: Stand Model, Desktop Model, and Wall-Mounted Model. |
|
PRODUCT HIGHLIGHT : |
| Ultra-compact design available in three models, saving space in the operating room and throughout the hospital. 10-inch touch screen for clear observation and smooth operation. Minimum tidal volume of 5 ml, providing enhanced support for small animals. Turbine drive eliminates the need for gas configuration, reducing anesthesia expenses. Includes two auxiliary power inputs for easy device integration. Supports multiple ventilation modes: VCV, PCV, and VS SIMV. Optional BN30 Bain Block. Compatible with mainstream or sidestream anesthesia modules. Compatible with mainstream or sidestream CO2 modules. Side rail lock for secure IV pole integration. Electronically driven by high – performance turbines ; no drive gas required. |
|
Environmental Specifications |
|
| Work environment | Temperature: 10~40 ; Relative humidity: 15% ~ 95% |
| Storage environment | Temperature: 20~60 ; Relative humidity: 10% ~ 95% |
|
Display |
|
| Display Screen |
10.1 inch touch screen, 1280 x 800 resolution |
|
Power Specifications |
|
| Input Voltage | 110V-240V, 50/60Hz |
| Battery Type | Lithium Ion Battery, 14.8V, 5000mAh |
| Volume | Core Drying: 300 ml – 360 ml Core Wetting: 240 ml – 300 mlBetween the max and min tick marks: 200 ml –260 ml |
| Minimum battery power | 120 minutes (using a fully charged new battery under standard operating conditions) |
| Output Specifications | 2 AC outputs, 100V-240 V/1.8A~0.9A, 50/60Hz |
|
Circuit System Specifications |
|
|
Source gas |
Compressed oxygen/compressed air/oxygen |
|
Gas pressure range |
280–600 kPa / 40–87 psi |
|
Port type |
NIST/DISS |
|
Gas pressure gauge |
0–1 MPa / 0–140 psi |
|
Air source safety valve |
Built in |
|
Flow meter adjustment |
0–4 L/min |
|
Vaporizer tank base |
Single tank position |
|
Respiratory System Specifications |
|
|
Manual breathing bag |
Coaxial 22mm (OD) / 15mm (ID) |
|
Inspiratory Valve Port |
Coaxial 22mm (OD) / 15mm (ID) |
|
Expiratory Valve Port |
Coaxial 22mm (OD) / 15mm (ID) |
|
ACGO Port |
Coaxial 22mm (OD) / 15mm (ID) |
|
AGSS Port |
30mm outer conical joint |
|
Airway pressure |
-20 cmH2O ~ 100 cmH2O |
|
APL valve |
Adjustment range: 0 ~ 70 cmH2O, with one key closing |
|
CO2 Absorber Canister |
Volume 1400 ml |
|
Options |
|
|
Ventilation modes |
PCV, SIMV |
|
Source gas |
Dual gas source/oxygen concentrator |
|
Installations |
Wall mounted |
|
Trolley & extension |
SD70 trolley, oxygen concentrator platform, |
|
Monitoring modules |
Mainstream/sidestream CO2 monitoring |
|
Disposable accessories |
Large, medium and small breathing circuits, Bain |
|
Ventilator Specifications |
|
|
Driving method |
Turbine |
|
Ventilation modes |
VS, VCV, PCV, SIMV |
|
Tidal volume (Vt) |
5ml–1500ml |
|
Inspiratory pressure (Pinsp) |
5cmH2O–50cmH2O |
|
Support pressure (Psupp) |
3cmH2O–50cmH2O |
|
Positive end exhalation pressure (PEEP) |
OFF, 3cmH2O–30cmH2O |
|
Respiratory Rate (RR) |
2bpm–60bpm |
|
Minimum respiratory rate (Min RR) |
2bpm–60bpm |
|
Inspiratory to expiratory ratio (I:E) |
4:1–1:8 |
|
Inspiratory time (Tinsp) |
0.2s–10.0s |
|
Trigger pressure (P-Trig) |
–20cmH2O ~ –2cmH2O |
|
Trigger flow rate (F-Trig) |
0.2L/min–20L/min |
|
Tidal volume (Vt) |
0ml-3000ml |
|
Minute ventilation volume (MV) |
0L/min-100L/min |
|
Peak Airway Pressure (PEAK) |
-20cmH2O-100cmH2O |
|
Positive end expiratory pressure (PEEP) |
0cmH2O-70cmH2O |
|
Respiratory Rate (RR) |
0bpm-120bpm |
|
Inspiratory to expiratory ratio (I:E) |
20:1-1:20 |
 |
